veux



Highly efficient and portable visualization framework for OpenSees

veux (pronounced “view”) is a finite element rendering framework that leverages modern web technologies to produce sharable, efficient, and interactive renderings for OpenSees.

Examples can be found at https://gallery.stairlab.io and documentation is at https://veux.io

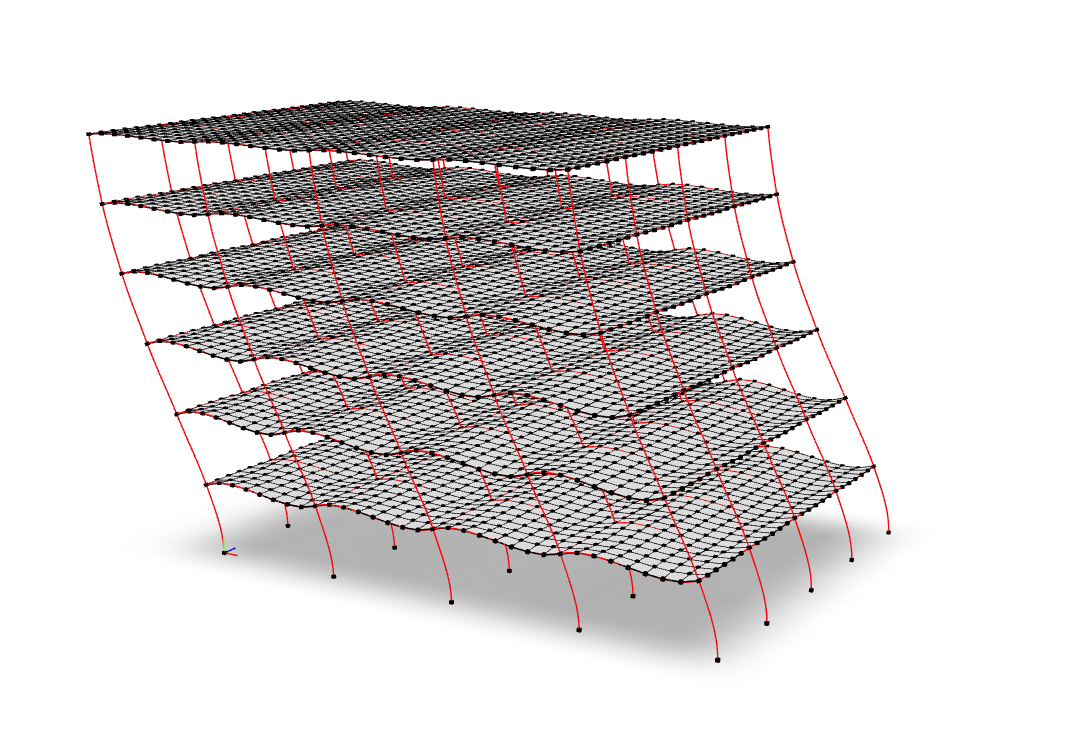

Rendering of a finite element shell model in OpenSees, created using veux.
3D rendering of a building modeled in OpenSees using veux. Rendering of a deformed shaft exhibiting hockling performed with FEDEASLab and rendered with veux.
